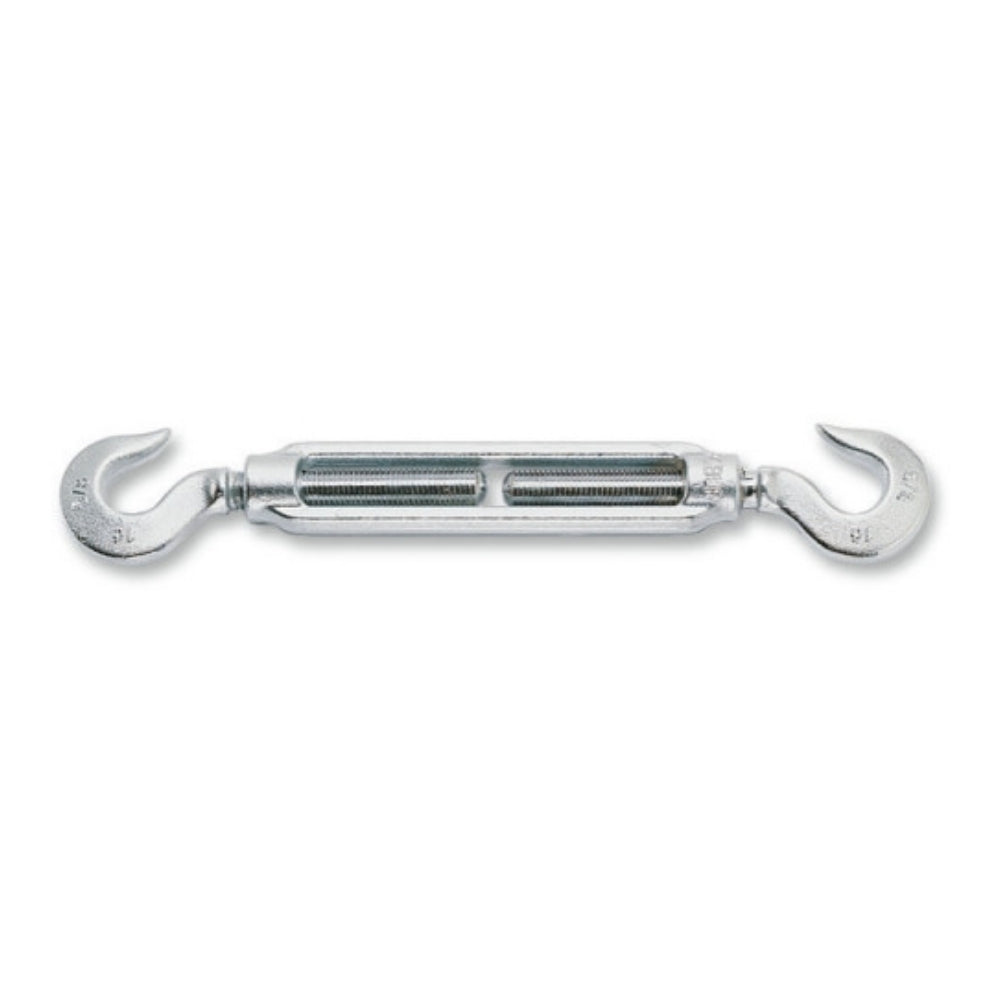

Beta 8007Z M10 Galvanized Two-Hook Tensioners

Beta 8007Z M10 Galvanized Two-Hook Tensioners

The Beta 8007Z M10 galvanized two-hook tensioner is a reliable and durable component, ideal for pulling, tensioning, and anchoring operations in industrial, construction, and nautical settings. Made of high-strength galvanized steel , it offers optimal corrosion protection and long life, even in outdoor environments.

Thanks to the M10 thread and two opposing hooks , the Beta 8007Z tensioner allows for precise tension adjustment in both directions, ensuring safe and stable tightening. The product is tested according to the highest quality standards, with a safety factor of 4 , chemical analysis and tensile tests carried out in the laboratory.

The tensioner is supplied with official certifications , including the CE Declaration of Conformity , the Product Specification and the Type 2.2 UNI EN 10204 Test Report , to guarantee the quality and construction reliability.

Technical features:

• Model: Beta 8007Z M10

• Product code: 080070110

• Type: Galvanized two-hook turnbuckle

• Thread: M10 (3/8”)

• Safety factor: 4

• Working load capacity (WFL): 140 kg

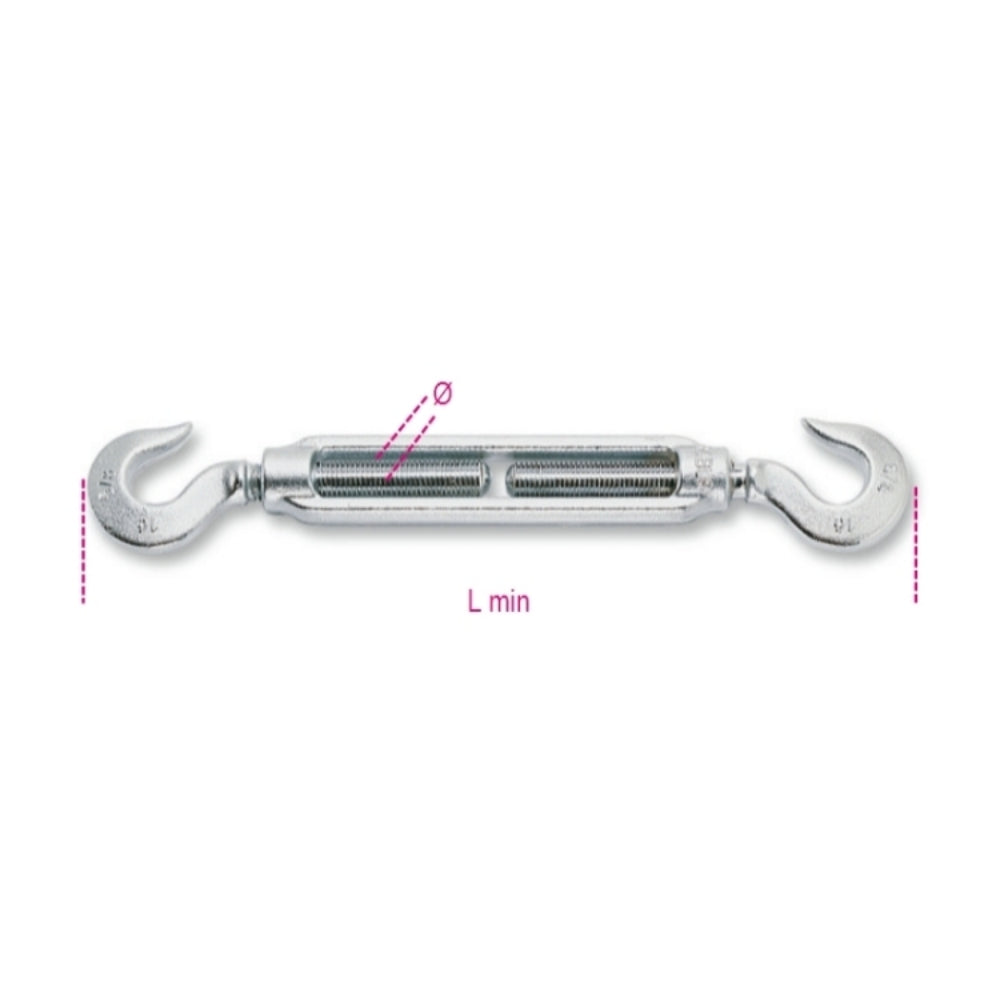

• Minimum length (L min): 211 mm

• Finish: Anti-corrosion galvanized

• Weight: 217 g

• Logistic dimensions: 230 x 110 x 55 mm

Certifications and tests:

• Chemical analysis of materials

• Tensile test

• Product Specification

• Test Report Type 2.2 UNI EN 10204

• CE Declaration of Conformity

Advantages and strengths:

• High mechanical resistance

• Corrosion protection thanks to galvanization

• Precise adjustment of the shot on both sides

• Guaranteed quality certifications and tests

• Ideal for industrial, marine and structural tensioning applications
