Semi-automatic MIG/TIG/MMA Inverpulse 320 400V ACC Telwin Welding Machine

Semi-automatic MIG/TIG/MMA Inverpulse 320 400V ACC welding machine - Telwin

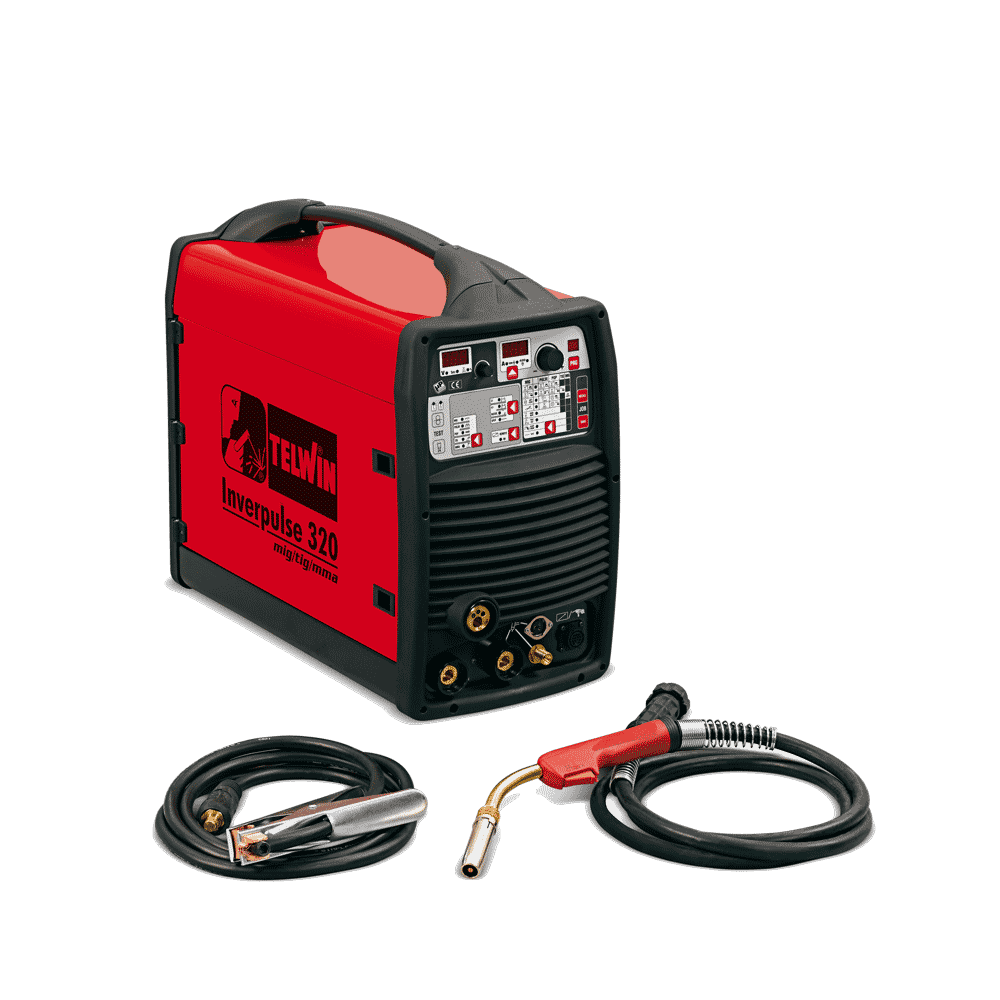

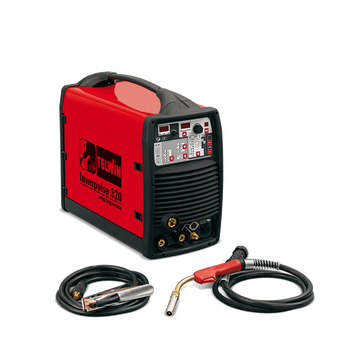

The Inverpulse 320 by Telwin is a high-performance, multifunctional semi-automatic welding machine designed to meet the professional needs of construction sites and industrial environments. With the ability to perform MIG-MAG , argon arc TIG , and manual MMA welding, this device is characterized by advanced, versatile and reliable technology, which allows it to tackle multiple types of work on different materials.

Main Features and Functionality:

• Inverter Technology : Ensures high energy efficiency and welding precision thanks to the synergic control of the parameters.
• Welding Mode :
  • MIG-MAG : Suitable for welding all types of steels and alloys, even without flux.
  • TIG : Argon arc welding.
  • MMA : Manual arc welding with electrodes up to 6 mm in diameter.
• Synergic Programs : 50 preset synergic programs to simplify use in different conditions. In addition, up to 40 customized programs can be stored, ensuring high operational flexibility.
• Industrial Compatibility : Designed for intensive use, it has the ability to connect to automatic installations for work in industrial contexts.
• Feed Rollers : 2 pairs of rollers included for MIG-MAG and FLUX welding.

Advantages:

• Versatility : Supports MIG-MAG , FLUX , MMA , and TIG welding, allowing you to work on a wide range of materials and projects.
• High Power : With an adjustable current range from 10 to 300A, the Inverpulse 320 can tackle precision welding as well as intensive jobs.
• Advanced Control Features :
  • Arc Force : Stabilizes the welding arc for optimal material melting.
  • Hot Start : Facilitates initial arc ignition, preventing defects.
  • Anti-Stick : Prevents the electrode from sticking to the piece being welded, improving the quality of the work.
• Reliability : Made in Italy, it offers a high standard of construction and durability, with IP23 protection rating, which makes it resistant to dust and water splashes.
• Accessories Included :
  • Welding torch MT36.
  • DX70 ground clamp with 3 meter cable.
  • Gas regulator and feed rollers for wires of various diameters.

Technical Specifications:

• Welding current : 10 - 300 A
• Power supply voltage : 3x380V (50-60 Hz)
• Welding wire diameter :
  • Flow wire: 1.0 - 1.2 mm
  • Aluminum: 0.8 - 1.2 mm
  • Stainless steel: 0.8 - 1.2 mm
  • Steel: 0.6 - 1.2 mm
• No-load voltage : 78 V
• Duty cycle : 35% at maximum current
• Power consumption : 6 - 10.5 kW
• Degree of protection : IP23
• Weight : 45.5 kg
• Dimensions : 70 x 34 x 59 cm

The Telwin Inverpulse 320 MIG/TIG/MMA is a versatile, powerful and professional solution for those who work in the industrial sector and on construction sites. Thanks to its ability to memorize programs, versatility in welding modes and advanced control, it represents an excellent choice for those seeking precision, efficiency and reliability in different types of welding.
