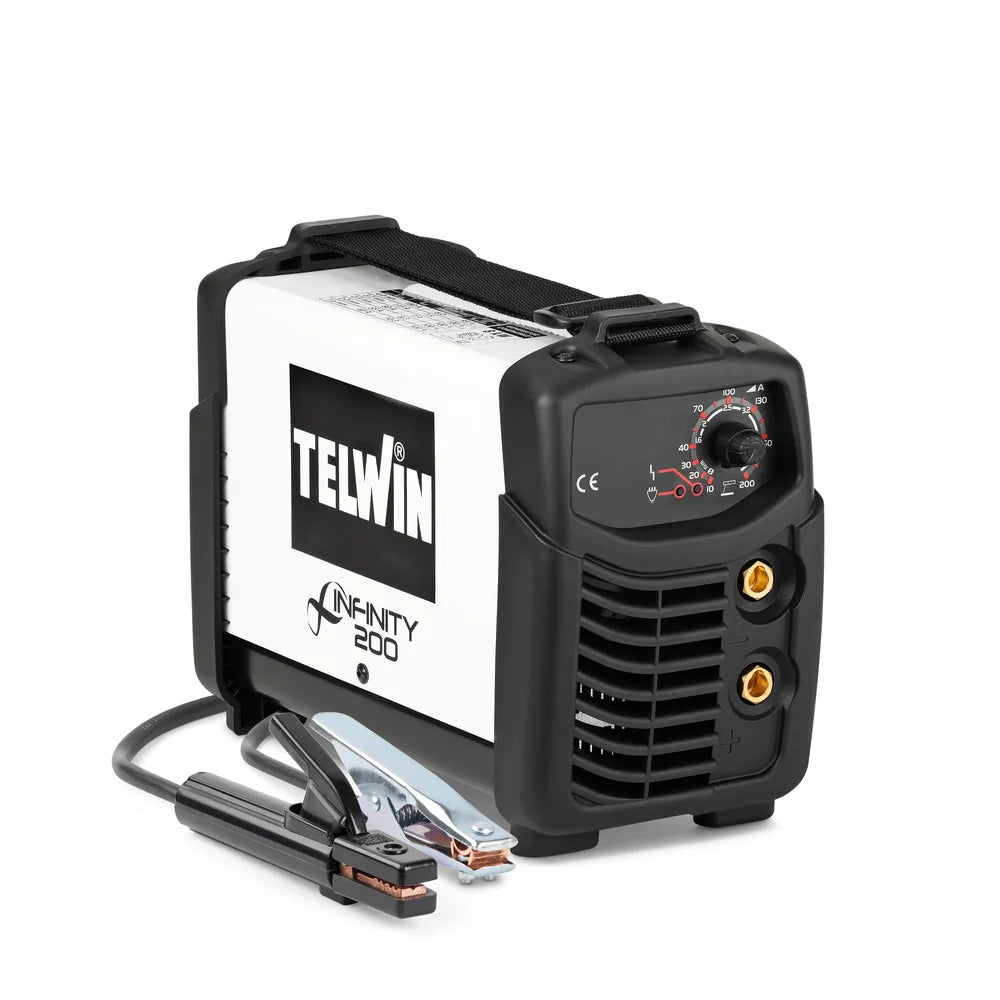

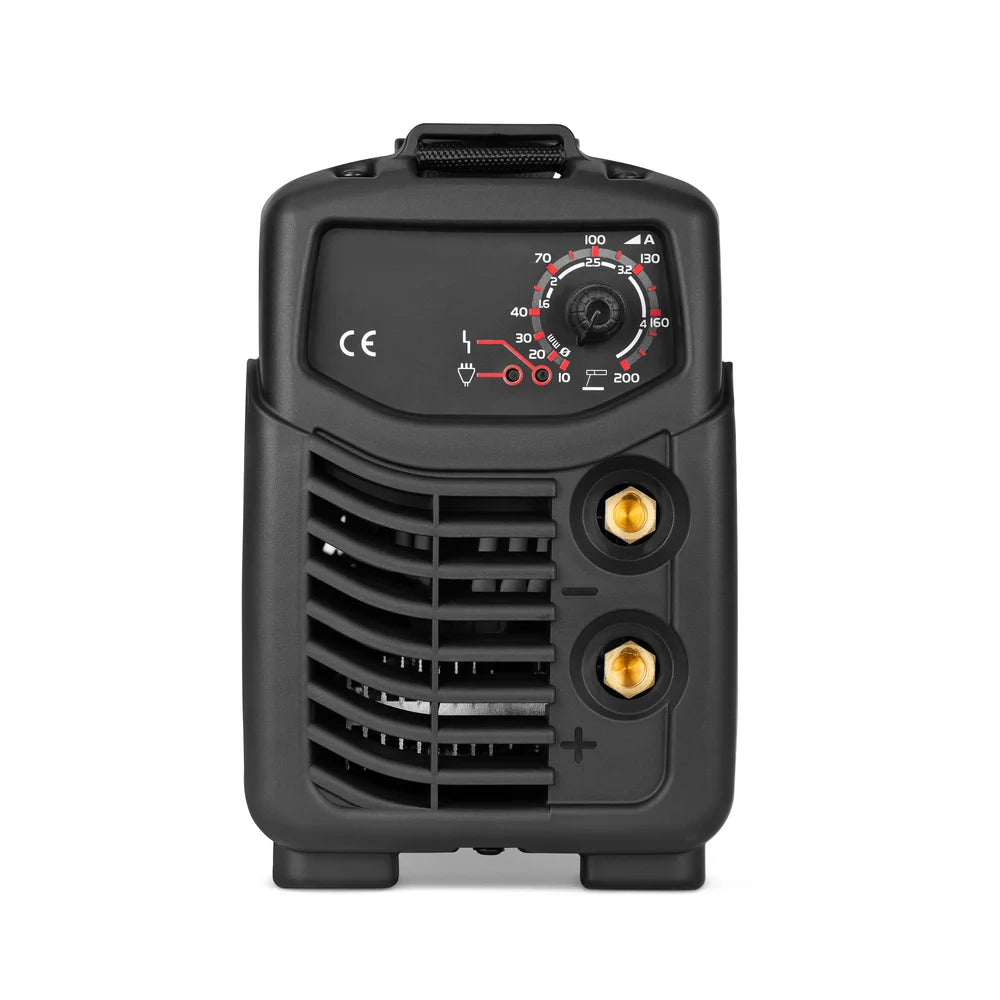

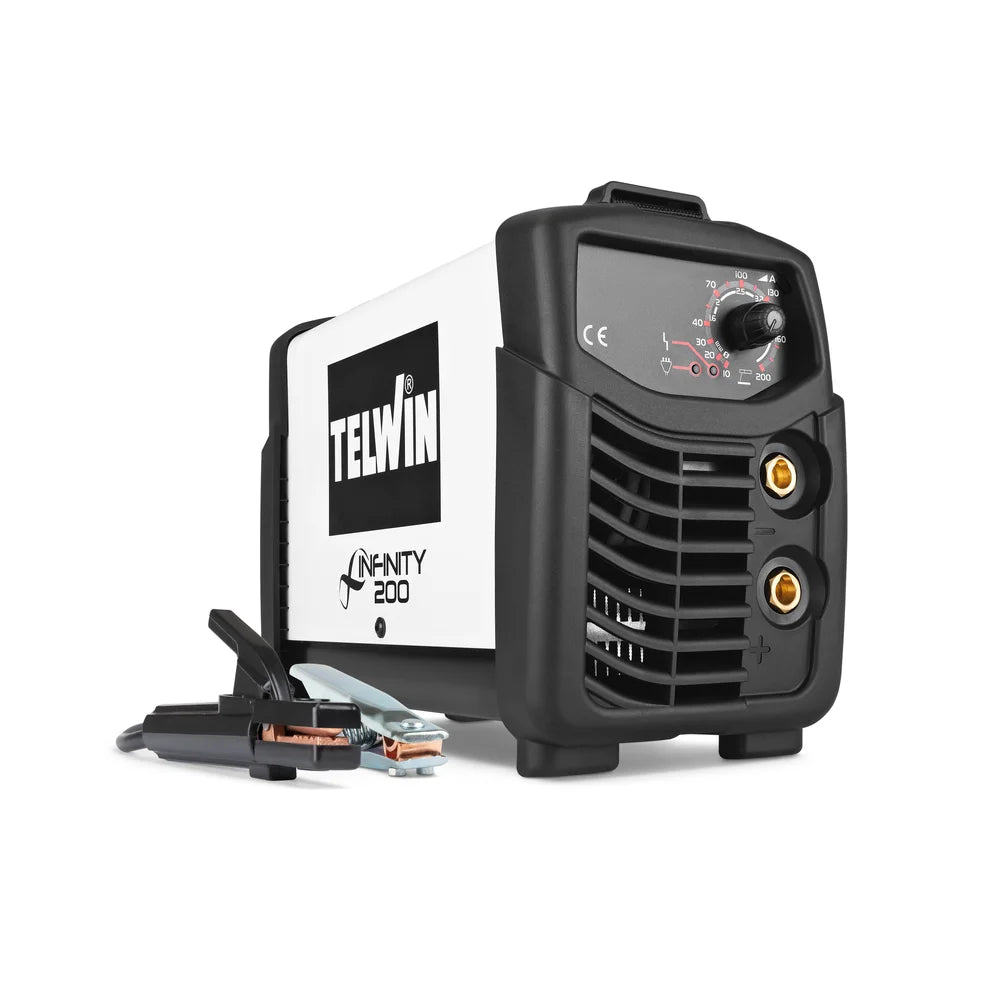

Telwin INFINITY 200 MMA and TIG 230V Inverter Welder - 816129

Telwin INFINITY 200 MMA and TIG 230V Inverter Welder – 816129

The Telwin INFINITY 200 is a compact and lightweight inverter welder, ideal for professional welding with coated electrodes (MMA) and direct current TIG (DC, scratch striking). Thanks to inverter technology, it ensures low consumption, maximum arc stability, and high performance even in the presence of voltage variations.

It is compatible with motor generators (+/- 15%), has advanced arc control devices ( arc force, hot start, anti-stick ) and protection systems against overcurrent, overvoltage, undervoltage and overheating.
Supplied complete with accessories for MMA welding: earth clamp, electrode holder and connection cables.

Main features

• Inverter technology for low consumption and high performance

• MMA and TIG DC welding (scratch striking)

• Automatic adjustment based on electrode diameter

• Compatible with a minimum 8 kW generator

• Integrated devices: arc force, hot start, anti-stick

• Protections: thermostatic, overcurrent, overvoltage, undervoltage

• Lightweight, compact and easily transportable (weight 3.65 kg)

Technical data

• Code: 816129

• Mains voltage: 230V (±15%) – 50/60 Hz

• Current regulation range: 10 – 200 A

• Max current: 180A @20%

• Current 35%: 130A

• Continuous current: 110A

• No-load voltage: 82 V

• Maximum absorbed power: 5.6 kW

• Power consumption at 60%: 3.1 kW

• Max current consumption: 36 A

• Yield: 86%

• Power factor (cosφ): 0.7

• Usable electrodes Ø: 1.6 – 4 mm

• Degree of protection: IP23

• Dimensions: 30.4 x 13.8 x 21.3 cm

• Weight: 3.65 kg

Standard equipment

• Toledo 250 (250A) ground clamp

• Dallas 300 Electrode Holder (300A)

• TW05V-A cables with plug
