Telwin Supermig 480 Aqua MIG - MAG - FLUX - BRAZING Wire Welder - 822046
Telwin Supermig 480 Aqua MIG-MAG-FLUX-BRAZING Wire Welder - 822046

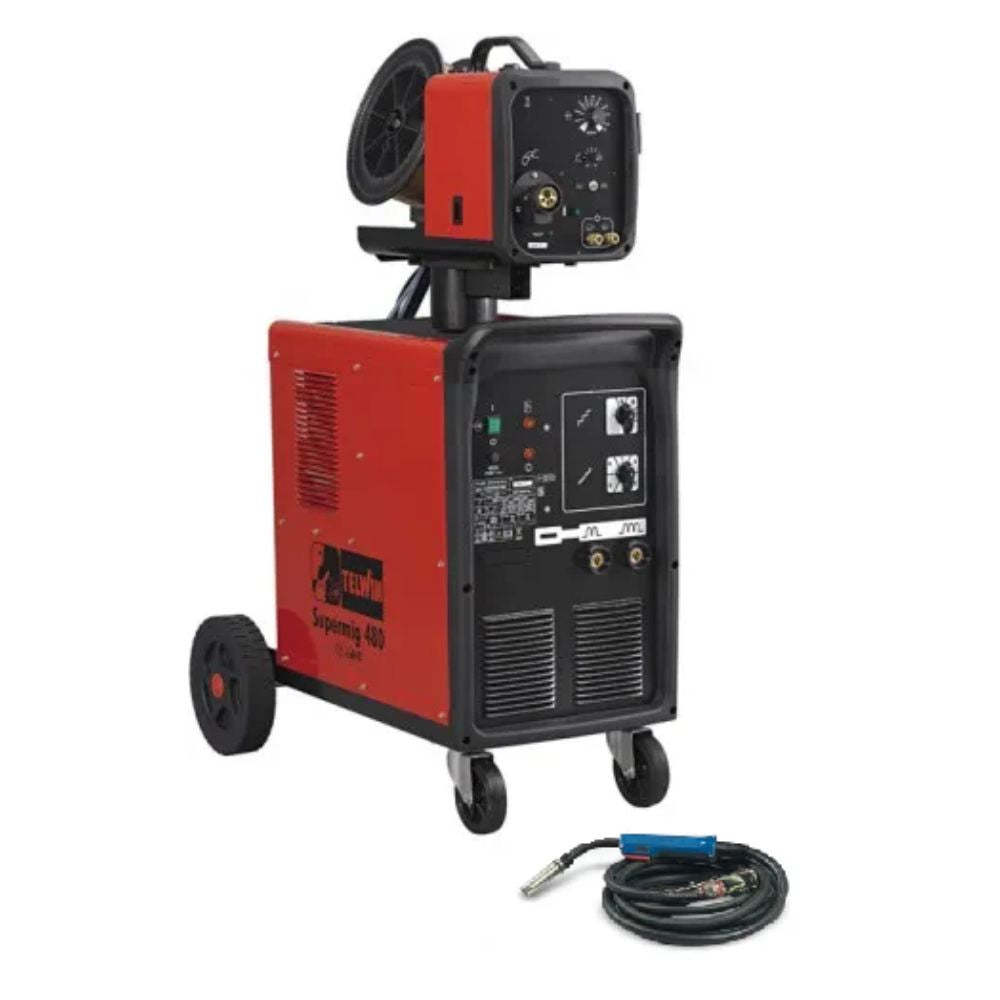

The Telwin Supermig 480 Aqua is a three-phase MIG-MAG-FLUX-BRAZING wire welder with separate 4-roller wire feeder , designed for professional and industrial use.
Ideal for processing steel, stainless steel and aluminium , it is equipped with a water cooling unit and guarantees high performance, robustness and flexibility of use even in the most demanding jobs.
The Supermig 480 stands out for its regulation precision , arc stability , and the possibility of adjusting fundamental parameters such as spot welding time , burn back , wire ramp and reactance .
The range can also be extended up to 30 meters with optional extension cables, making it ideal for large workshops and production departments.
Main features
-
MIG-MAG / FLUX / BRAZING technology with separate 4-roller wire feeder.
-
Robust and reliable , built for continuous industrial use.
-
Precise bow adjustment thanks to 24 tension positions .
-
2/4 stroke torch selector for greater operational control.
-
Customizable settings:
-
Pointing time
-
Wire climbing ramp
-
Final burn time (burn back)
-
Two reactance positions
-
-
Thermostatic protection for maximum safety.
-
Compatibility with extension cords up to 30 metres between generator and wire feeder.
-
Complete with GRA 2500 230V water cooling unit .
Advantages
-
Professional and consistent performance over time.
-
Wide current regulation range (50 - 420 A) .
-
Possibility of working with different types of wires: steel, stainless steel, aluminium, flux and brazing.
-
Separate wire feeder for better handling and work management.
-
Easy maintenance thanks to the modular structure.
-
Made in Italy – Telwin , synonymous with reliability in the welding sector.

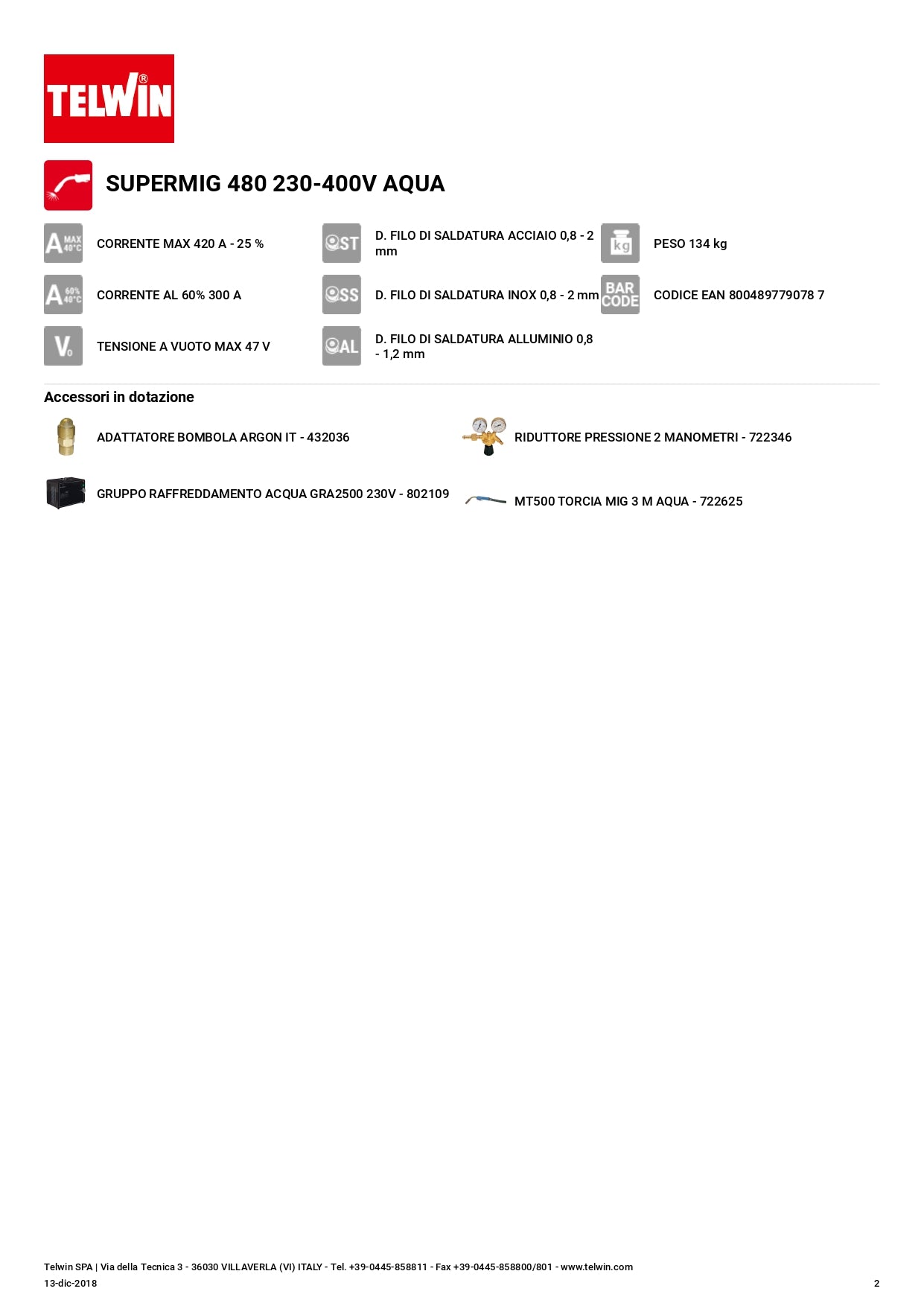

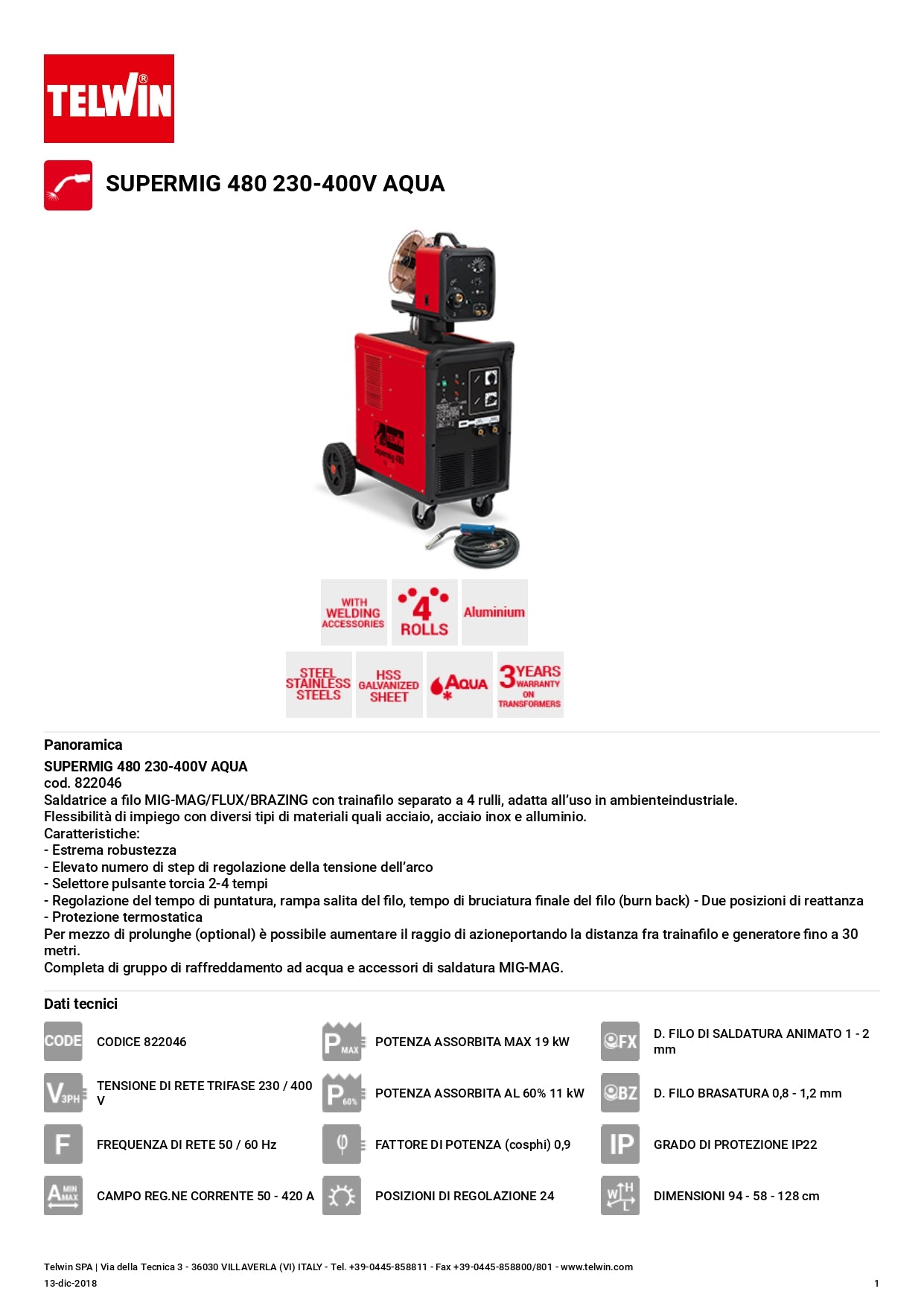

Technical Specifications
| Characteristic | Value |
|---|---|
| Producer | Telwin |
| Model | Supermig 480 Aqua |
| Product code | 822046 |
| EAN | 8004897790787 |
| Mains voltage | 230 / 400 V (three-phase) |
| Network frequency | 50 / 60 Hz |
| Current adjustment field | 50 – 420 A |
| Maximum current | 420 A @ 25% |
| Current at 60% | 300 A |
| Max. no-load voltage | 47 V |
| Max absorbed power | 19 kW |
| Power consumption at 60% | 11 kW |
| Power factor | 0.9 cosφ |
| Adjustment positions | 24 |
| Degree of protection | IP22 |
| Steel wire diameter | 0.8 – 2.0 mm |
| Stainless steel wire diameter | 0.8 – 2.0 mm |
| Aluminum wire diameter | 0.8 – 1.2 mm |
| Cored wire diameter | 1.0 – 2.0 mm |
| Brazing wire diameter | 0.8 – 1.2 mm |
| Dimensions (L x W x H) | 940 x 580 x 1280 mm |
| Weight | 134 kg |
Accessories supplied
-
MIG Torch MT500 Aqua 3 m
-
Argon cylinder adapter
-
Pressure reducer with double pressure gauge
-
GRA 2500 230V water cooling unit
-
S.480-580 Aqua 4-roller wire feeder
-
Roller Ø 0.8–1 mm for FE wire
-
Flashlight hanging hook
Fields of use
-
Mechanical workshops and heavy carpentry
-
Industrial processing of steel, stainless steel and aluminium
-
Production of metal structures
-
Professional repairs and maintenance
-
Applications with flux-cored wire or brazing
