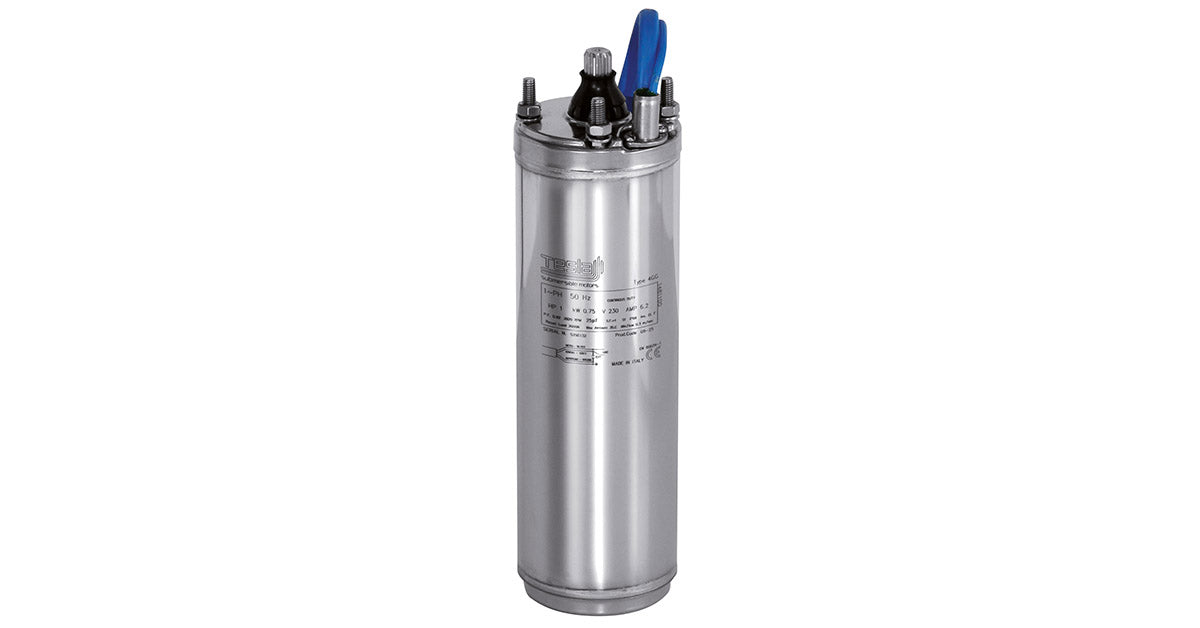

DAB-Tesla 4" Single-Phase 4OL Submersible Motor 1.5 kW - 2 Hp - 60122753

DAB-Tesla 4" Single-Phase 4OL 1.5 kW 2 Hp 220V Submersible Motor

The DAB-Tesla 4" 4OL Series Submersible Motor is a two-pole, single-phase asynchronous electric motor designed to ensure high performance and long life in water pumping systems. With a power of 1.5 kW (2 Hp) and a 220V power supply, it is ideal for civil, industrial and agricultural applications.

Made of AISI 304 stainless steel for all parts in contact with water, it offers corrosion resistance and reliability in harsh conditions. A special FDA-certified fluid ensures cooling and lubrication of the ball bearings, while the stator is protected by an AISI 304L stainless steel jacket to ensure strength and durability.

The removable cable connector makes maintenance quick and easy, while the cable is ACS, WRAS, and KTW certified for contact with drinking water. The motor is compatible with variable speed drives (30 Hz - 50/60 Hz), expanding its application possibilities.

Thanks to the IP68 protection rating, the F insulation class and the NEMA 4” flange, the DAB-Tesla 4OL submersible motor is the ideal choice for installations up to 250 m deep , with a maximum of 20 starts/hour , ensuring efficiency and reliability.

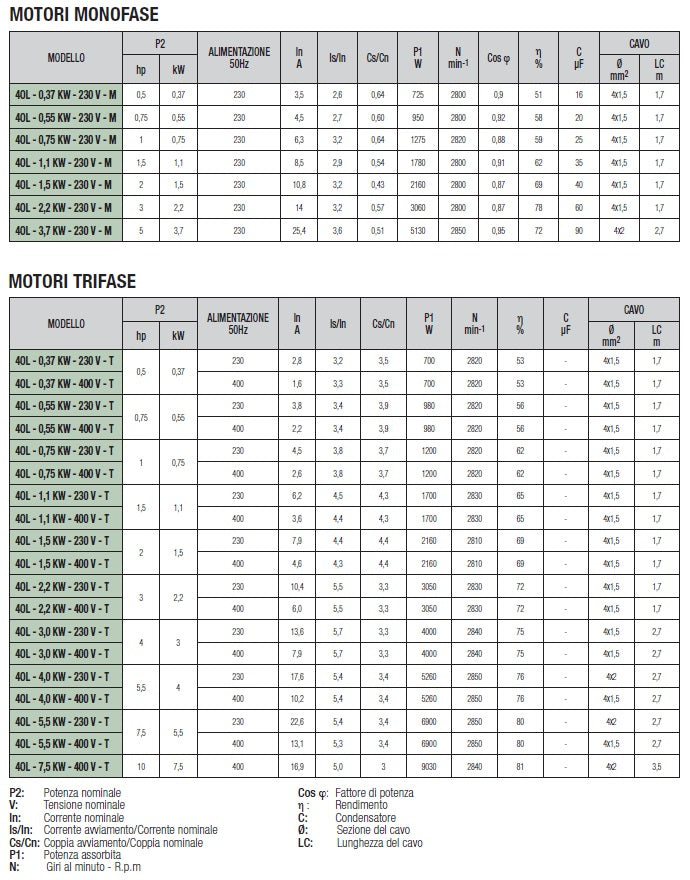

Technical features

• Model: DAB-Tesla 4OL Series

• Type: Two-pole asynchronous submersible motor, rewindable

• Power: 1.5 kW – 2 Hp

• Power supply: Single phase 220V

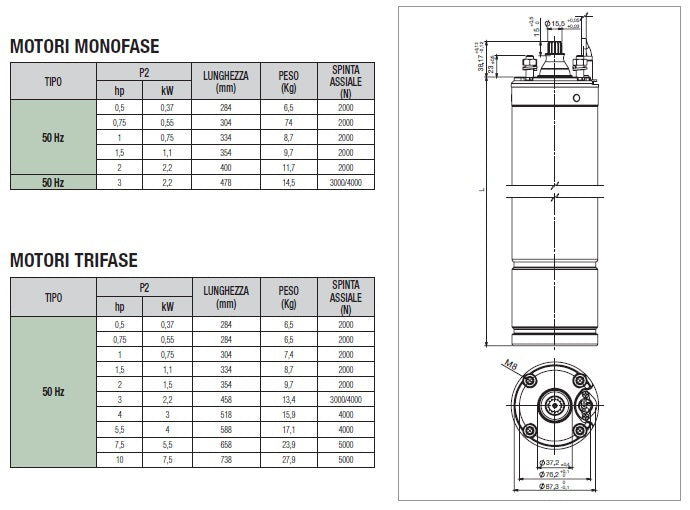

• Flange: NEMA 4”

• Material: AISI 304 stainless steel (parts in contact with water)

• Insulation class: F

• Degree of protection: IP68

• Minimum cooling rate: 0.3 m/s at 35 °C

• Power tolerance: +6% / -10%

• Maximum number of starts: 20/h

• Maximum operating depth: 250 m

• Horizontal operation: 0.5 Hp to 10 Hp
