DAB GRINDER 1400 Submersible Electric Pump for Waste Water Grinding - 103010440

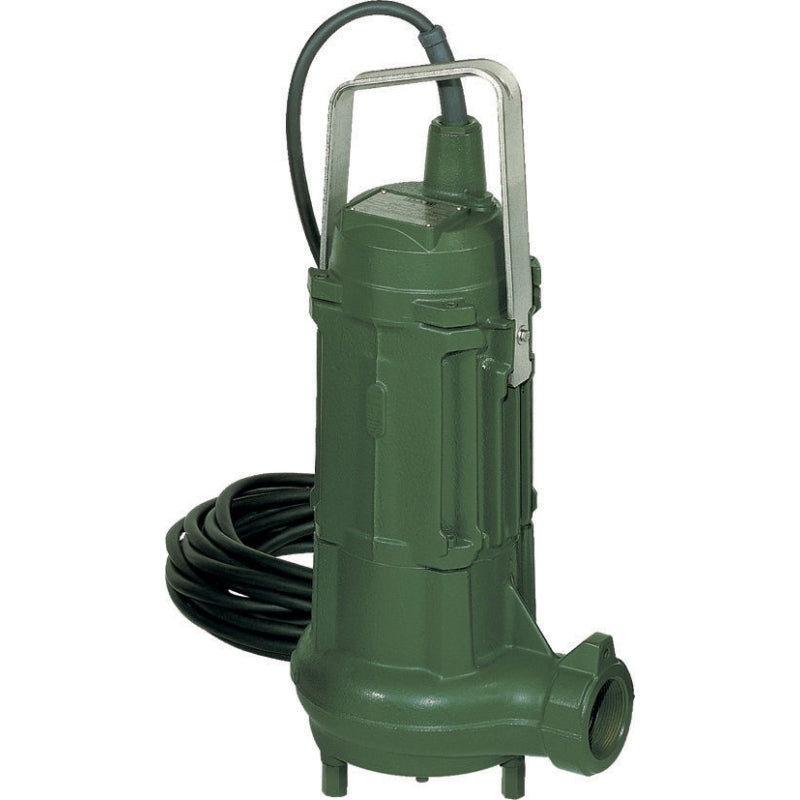

DAB GRINDER 1400 M Submersible Grinder Pump – 103010440

NEW PUMP PACKED IN NON-ORIGINAL BOX

The DAB GRINDER 1400 M submersible grinding electric pump is designed for lifting and disposing of wastewater and sewage containing solids and long fibers . Thanks to the micro-cast steel grinding device , it reduces and fragments solid materials, preventing blockages and ensuring continuous and safe operation in domestic, civil, and industrial wastewater systems.

The pump body, motor casing and wear-resistant impeller are made of high-strength cast iron , while the shaft, handle and screws are made of stainless steel , ensuring strength, durability and resistance to corrosion.

The submersible motor is a continuous-duty asynchronous type, with IP68 protection rating and F insulation class, guaranteeing maximum reliability even when submerged up to 10 metres deep . The pump is equipped with integrated thermal protection (connectable to the ED3M HS control panel, essential for correct operation) and 10 metres of neoprene cable for immediate installation.

Suitable for fixed or portable systems, it represents an ideal solution for those who need a powerful and durable grinding pump for wastewater management.

Technical features

• Model: DAB GRINDER 1400 M – 103010440

• Type: Submersible grinding electric pump for waste water

• Power supply: Single phase 220–240 V / 50 Hz

• Max P1 power: 1.95 kW

• Nominal P2 power: 1.1 kW – 1.5 Hp

• Current draw: 8.7 A

• Capacitor: 40 µF – 450 Vc

• Flow rate: from 3 to 9 m³/h

• Head: up to 25 meters

• Pumped liquid temperature: from 0°C to +55°C

• Maximum ambient temperature: +40 °C (with emerged motor)

• Maximum immersion: 10 m

• Pump body material: Cast iron

• Shredder: Micro-cast steel

• Mechanical seal: Silicon carbide with inspectable oil chamber

• Installation: Fixed or portable vertically

• Degree of protection: IP68

• Insulation class: F

• Cable: 10 m neoprene

Main advantages

• Steel shredding device: eliminates solids and long fibres.

• Cast iron pump body and stainless steel components: maximum resistance and durability.

• Built-in thermal protection for added safety.

• Reliable and quiet continuous-duty submersible motor.

• Suitable for wastewater, sewage and wastewater in civil and industrial environments.

• Easy installation: fixed or portable.
