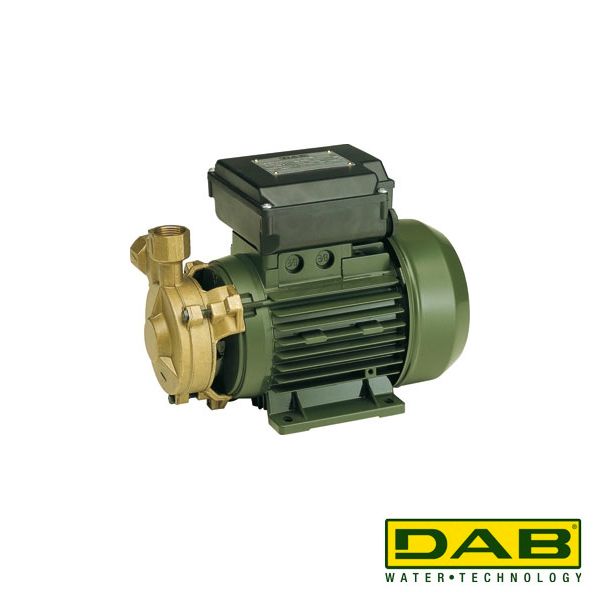

DAB KP 60/12 T Peripheral Electric Pump

NEW PUMP WITH CRACKED ELECTRICAL CONTACT COVER, NO PACKAGING

DAB KP 60/12 T Three-Phase 400V 1.1 kW 1.5 Hp Peripheral Electric Pump

The DAB KP 60/12 T peripheral electric pump is a 1.1 kW (1.5 HP) three-phase centrifugal pump designed for moving small water flows at high pressure, ideal for industrial and irrigation applications. With a maximum head of 93 meters (9.3 bar) and a flow rate of 2,100 liters/hour, this pump represents a compact, robust, and high-performance solution.

The durable cast iron pump body ensures strength and durability, while the compact design facilitates installation even in small spaces. The pump can pump water from depths of up to 8 meters and handles clean liquids such as clear water, rainwater, groundwater, pond water, or swimming pool water when combined with a sand and solids filter.

Before starting, it is essential to fill the pump body and the suction pipe with water and use a non-return valve, so as to ensure immediate operation and prolong the useful life of the device.

Thanks to its 400V three-phase power supply, the DAB KP 60/12 T ensures energy efficiency and consistent performance, making it perfect for industrial and agricultural systems requiring high pressure with low flow rates.

Technical features

• Model: DAB KP 60/12 T

• Type: Peripheral centrifugal electric pump

• Power supply: Three-phase 400V – 50 Hz

• Power: 1.1 kW – 1.5 Hp

• Maximum flow rate: 2,100 l/h

• Maximum head: 93 m (9.3 bar)

• Max suction: 8 m

• Hydraulic connections: ¾” suction – ¾” delivery

• Pump body material: Cast iron

• Pumped liquid temperature: from -10°C to +80°C

• Weight: 9.9 kg

• Degree of protection: IP44 (DAB standard)

• Use: Clear water, rainwater, groundwater, swimming pool, pond (with filter against solids)

Main advantages

• High pressure with low flow rates: ideal for specific applications.

• Cast iron pump body: robustness and long life.

• Suitable for various types of clean water.

• Compact and easy to install.

• Reliability from DAB, a leading brand in the electric pump sector.
