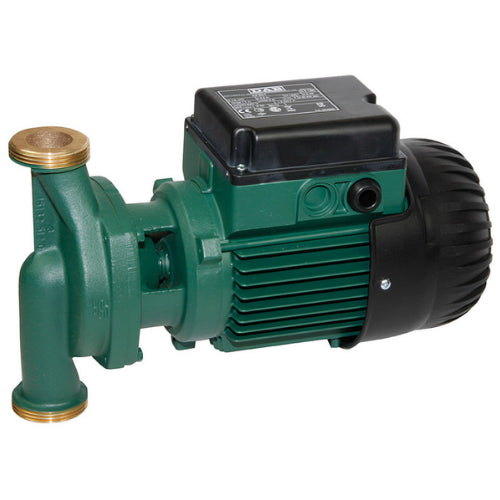

DAB ALP 2000 M Single-Phase 0.55kW 0.75HP 220V Electric Pump

DAB ALP 2000 M Single-Phase Electric Pump 0.55 kW – 0.75 HP – 220V

The DAB ALP 2000 M electric circulation pump is a high-quality in-line pump designed for residential and industrial applications. Thanks to its bronze pump body and motor mount, it guarantees maximum corrosion resistance and long life. It is the ideal solution for heating, air conditioning, refrigeration, and domestic hot water systems.

This DAB pump is equipped with a 0.55 kW (0.75 HP) two-pole single-phase asynchronous motor, with built-in thermal-amperometric protection and permanently inserted capacitor to guarantee safety and reliability in all conditions of use.

The technopolymer impeller and the carbon/ceramic mechanical seal ensure silent operation and constant performance, even with liquids at extreme temperatures, from -15 °C to +120 °C , making the electric pump also suitable for circuits with glycol mixtures up to 30%.

Main technical features:

• Power supply: Single phase 1x220/240V – 50Hz

• Power: 0.55 kW (0.75 HP)

• Flow rate: from 0.6 to 8.4 m³/h

• Head: up to 21.1 m

• Pump body and motor support: bronze

• Impeller: technopolymer

• Mechanical seal: carbon/ceramic

• Operating pressure: max 10 bar (1000 kPa)

• Liquid temperature: -15°C to +120°C

• Ambient temperature: max +40 °C

• Weight: 14.5 kg

Advantages:

• Compact structure and direct installation on pipes thanks to the in-line design.

• Long life and resistance to external agents thanks to the bronze pump body.

• Ideal for both civil and industrial systems.

• Wide operating range with flow rate up to 8.4 m³/h.

• Safe and reliable operation with built-in protection.

Applications:

• Hot water heating systems.

• Air conditioning and refrigeration systems.

• Domestic water recirculation systems.

• Civil and industrial applications requiring efficiency and reliability.
